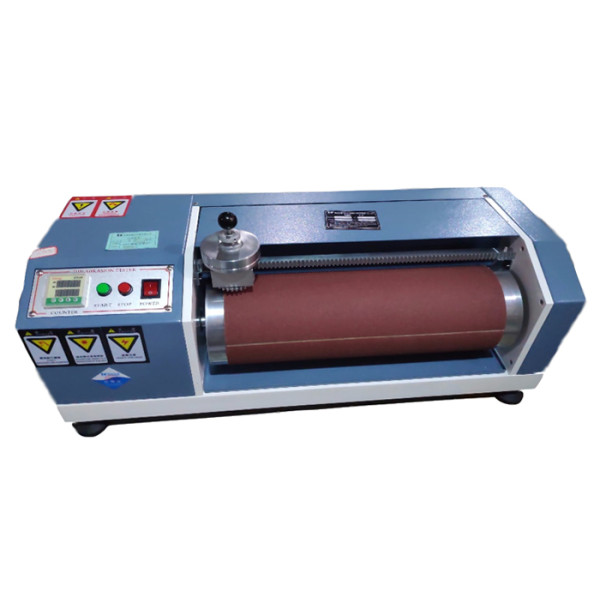

2.5N 4.2mm DIN ABRASION TESTER

2.5N 4.2mm DIN ABRASION TESTER

2.5N 4.2mm DIN ABRASION TESTER
2.5N 4.2mm DIN ABRASION TESTER2.5N 4.2mm DIN ABRASION TESTER2.5N 4.2mm DIN ABRASION TESTER
CategoriesRubber and Plastic Tester
BrandHUDA Test Machine Manufacturer
ModelHUD-P307
Name2.5N 4.2mm DIN ABRASION TESTER
Specimens size16mm, 6-15mm (D)
Fixture load2.5N
Weight load2.5N,5N
Fixture lateral displacement4.2mm/wheel each lap
Machine Size(L×W×H)70×30×30cm
FOB portshenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeOct 5,2024
Detail Information

APPLICATION

DIN Type Abrasion Tester is to measure the abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/frictional wear in their actual service, such as tires, conveyor drive belts, leather and shoe soles

TEST STANDARD

DIN-53516, ISO-4649, GB/T9867, ASTM D5963, ISO 20344 8.3

STANDARD FEATURES

Specimens size

16mm, 6-15mm (D)

Fixture load

2.5N

Weight load

2.5N,5N

Fixture lateral displacement

4.2mm/wheel each lap

wheel diameter

150mm

wheel length

460mm

wheel rotate speed

40rpm

Travel reservations

40m/20m

Abrasion speed

0.32m/sec

Dip angle

3°the angle of the specimen
back shaft with vertical roller face

Machine Size

(L×W×H)70×30×30cm

Weight

55KG
